We are Manufacturer, Supplier, Exporter, Designer, Service Provider of Evaporative Cooling Pads and our setup is situated in Pune, Maharashtra, India. Majorly we serve our products to customers from all over Maharashtra, Metro Cities like Pune, Mumbai, Chennai, Kolkata, Kochi, Bengaluru also MP cities like Indore, Bhopal, Gwalior, Satana, Dewas, Pithampur, Jabalpur etc.

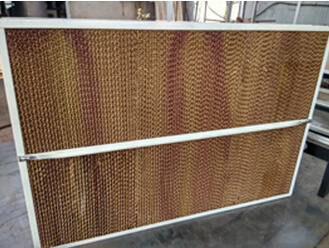

Cooling pads are made of the ripple fiber piles which are pressed in an angle of 45° and bound together in accordance with the cross direction of the ripples. Cooling pads boost superior hydroscopicity , wet stiffness, corrosion resistance and usable life because it adopts piles, with special hydroscopicity, advanced processing technology and the raw material added with special chemicals which will not be resolved by the action of water.

Applications

  • Evaporative Air Cooling System
  • House Hold Air Coolers
  • Industrial And Commercial Cooling Applications
  • Green Houses / Poultry Farms / Hatcheries
  • Live Stocks / Dairy Farms / Breeding Areas
  • Turbine "Air-Intake"
  • Spray painting booth

Model / size 7090 5090 evaporative-cooling-pad
H (inch) 60,66 60,66
W (inch) 24 24
D (inch) 2,3,4,6,8,12 2,3,4,6,8,12
h (mm) 7 5
α 45 45
ß 45 45

H : Height of Cooling Pad
W : Width of cooling pads

D : Thickness of Cooling pads
h : Ripple Height of Cooling pads

α : Ripple Angle
β : Ripple Angle

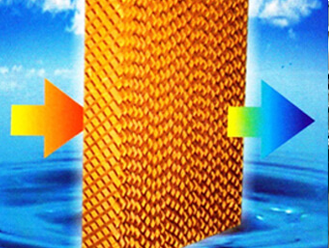

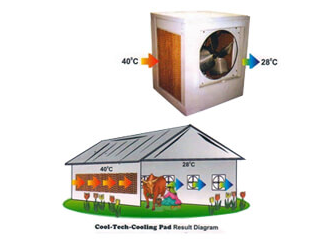

The cooling process of the cooling pad system is fulfilled in its core pile cushion. When the outside hot and dry air is pumped through the pile cushion, the water in the thin water membrane formed on the ripple piles will be turned in to vapors by absorbing the heat in the air so that the incoming air becomes cool and moist. It happens naturally as if the wind blows over the water surface. Therefore the vertical ventilation and cooling combination of cooling pad is the most economical and effective cooling measures. According to the applications in several years, a properly designed & installed cooling system is capable of controlling the room –temp at around 28°C even under the scorching weather.
